Most Crank No Start Conditions Are The Result Of Many Factors Including, Bad Sensor, PCM Programming, Improper Wiring Installation. Please Use This As A Checklist To Help Remedy Your Problem.

• Fuel Pressure Is 58-62 PSI (Gen 3/4) And 75-80 PSI (Gen 5)
• Spark Present At Plug
• Injectors Have Signal Commonly Tested Using A Noid Light
• Injectors Aren’t Gummed Up From Prolonged Sitting
• PCM Has VATS Deleted
• DTCs Present
• Vehicle And Engine Properly Grounded. Cylinder Heads Are OK To Ground Your Harness As Long As A Ground Strap Is Placed To Cylinder Head As Well.

Gen 3 Engines: Factory ECM Tach Settings Must Be Changed From A Factory 4 Cylinder Mode To The Correct Setting For Your Tachometer. If The Original Engine Was A 4 Cylinder No Change Is Needed, If 6 Cylinder Must Change From 6 to 4 In Settings, If 8 Cylinder Must Change From 6 to 3 In Settings. A Pullup Resistor Must Be Added As Well For Drive By Wire Applications Only.

Gen 4 Engines: Factory ECM Tach Settings Must Be Changed. For Most 8 Cylinder Gauges Initial Settings Of Type: Crank, High Resolution 7 and Low Resolution 8 Will Usually Do The Trick In Some Applications The High And Low Resolution Can Be Increased Or Decreased To Get A Spot On Accurate Tach.

GEN 3/ GEN 4 OIL PRESSURE SENSOR: PART NO: DELCO D1818A

GEN 3/ GEN 4 COOLANT TEMPERATURE SENSOR: PART NO: STANDARD TX111

GEN 3 DRIVE BY CABLE OXYGEN SENSOR: PART NO: BOSCH 13444

GEN 3 DRIVE BY WIRE OXYGEN SENSOR: PART NO: BOSCH 15284

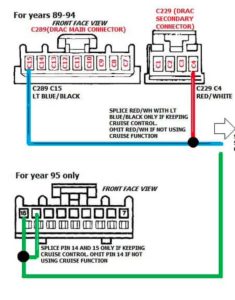

How To Connect The Loose Speedometer Wire. Locate The White DRAC/VSSB Buffer Box And Disconnect Plugs. Follow Wiring Below For Your Specific Year:

88-94 Models: Locate The Lt. Blue/Black Wire In The 9 Pin Plug And The Red/White Wire In The 4 Pin Plug. Tie Both Wires Together To Speedometer Wire. (Red/White Is Only Needed If Retaining Cruise Control)

95 Models: Locate The Dk. Green/White Wire In Position 14 And The Dk. Green Wire In Position 15. Tie Both Wires Together To Speedometer Wire. (Dk. Green/White Is Only Needed If Retaining Cruise Control)

A U0107 Diagnostic Trouble Code Is Very Common In Drive By Wire Gen 3 Swaps. This Code Is Most Commonly Thrown When Components Of The Drive By Wire Throttle System Are Mismatched (i.e. PCM/TAC Module/Pedal) Please Confirm PCM Year Calibration Is Correct To Exact Year Of TAC Module And Pedal.
